BU9833GUL-W (2Kbit)
Datasheet
● Notes on power ON
At power on, in IC internal circuit and set, Vcc rises through unstable low voltage area, and IC inside is not completely reset,
and malfunction may occur. To prevent this, function of POR circuit and LVCC circuit are equipped. To assure the action,
observe the following conditions at power on.
1. Set SDA= “H” and SCL = “L” or “H”.
2. Start power source so as to satisfy the recommended conditions of t R , t OFF , and Vbot for operating POR circuit.
t R
V CC
Recommended conditions of t R , t OFF , Vbot
t R
t OFF
Vbot
0
t OFF
Vbot
10ms or below
100ms or below
10ms or higher
10ms or higher
0.3V or below
0.2V or below

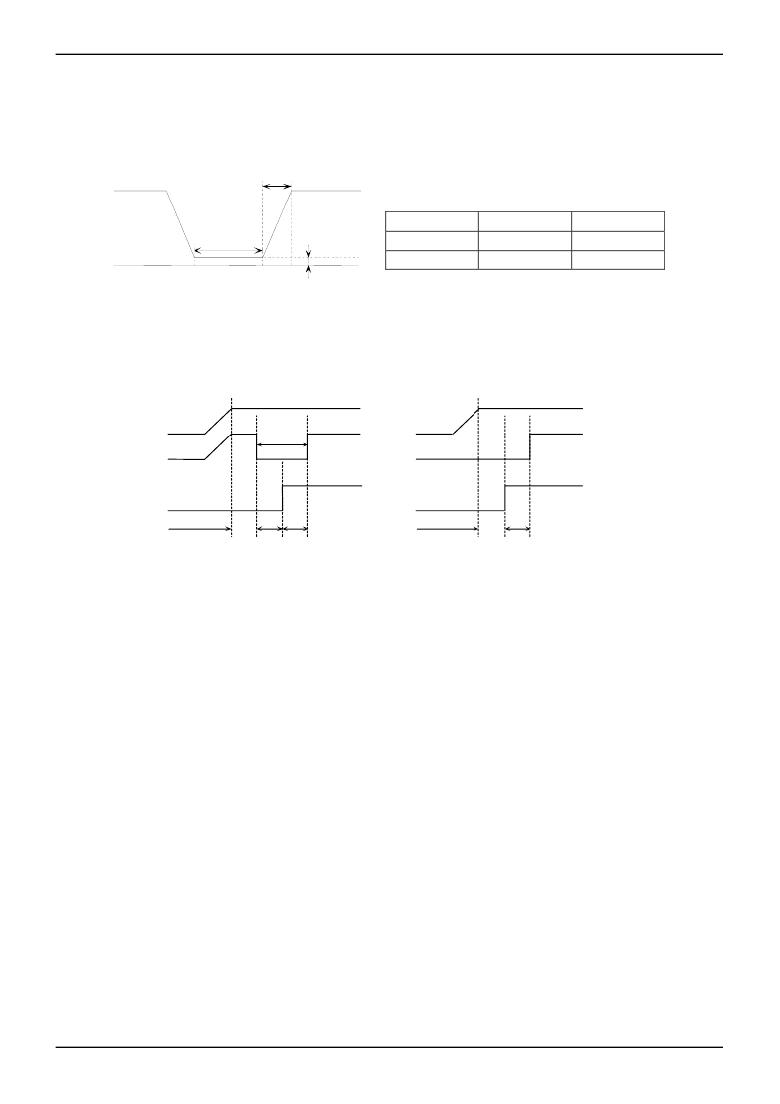

Figure 52. Rise waveform diagram
3. Set SDA and SCL so as not to become “Hi-Z”.
When the above conditions 1 and 2 cannot be observed, take the following countermeasures.
a) In the case when the above condition 1 cannot be observed. When SDA becomes “L” at power on.
→
Control SCL and SDA as shown below, to make SCL and, “H” and “H”.
V CC
tLOW
SCL
SDA
After Vcc becomes stable
After Vcc becomes stable
tDH
tSU:DAT
tSU:DAT
54
Figure 53. When SCL =”H” and SDA = “L”
Figure 54. When SCL = “H” and SDA = “L”
b) In the case when the above condition 2 cannot be observed.
→ After power source becomes stable, execute software reset (Page 16).
c) In the case when the above conditions 1 and 2 cannot be observed.
→ Carry out a), and then carry out b).
● Low voltage malfunction prevention function
LVCC circuit prevents data rewrite action at low power, and prevents wrong write. At LVCC voltage (Typ. = 1.2V) or below, it
prevent data rewrite.
● Vcc noise countermeasures
○ Bypass capacitor
When noise or surge gets in the power source line, malfunction may occur, therefore, for removing these, it is
recommended to attach a by pass capacitor (0.1 μ F) between IC Vcc and GND. At that moment, attach it as close to IC as
possible.
And, it is also recommended to attach a bypass capacitor between board Vcc and GND.
www.rohm.com
? 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111 ? 15 ? 001
21/24
TSZ02201-0R2R0G100450-1-2
04.SEP.2012 Rev.001
